ANSI/TIA-568-C.2 standard was replaced by the ANSI/TIA-568.2-D standard

This principle standards update incorporated the appropriation of 28 AWG Cords and Modular Plug Terminated Link (MPTL)

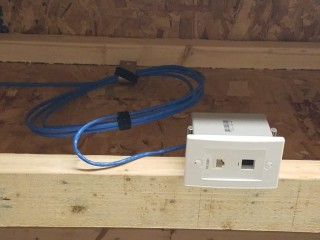

ANSI/TIA-568.2-D will bolster the utilization of MPTL: A design where a horizontal cable run associates legitimately to a device when it ends at an RJ45 plug. Previously, MPTL wasn’t acknowledged. In this update, it is adequate to connect a device in this design when installing an outlet, faceplate, and hardware cable. This arrangement will be particularly helpful when managing things like wireless access points (WAPs) and surveillance cameras.

We like to allude to the MPTL setup as a “direct connection.” This strategy productively associates IP devices with the network. A solitary link interfaces the gadget toward one side; the opposite finish of the link associates straightforwardly to any place it should be.

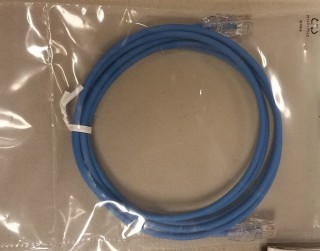

The Addition of 28 AWG Patch Cords

ANSI/TIA-568.2-D will also bolster the utilization of 28 AWG patch cords in specific applications. Beforehand, the standard’s position was that the cables shouldn’t be utilized since they didn’t meet the requirements. Rather, the standard had suggested four balanced twisted-pair cables: 22 AWG to 26 AWG.

This is uplifting news for high-density applications where congestion, airflow, and sharp bend radius are significant contemplations. Their tight diameter permits these 28 AWG patch cords to be utilized in spots where 22 AWG to 26 AWG might be troublesome or difficult to use. When it comes to utilizing 28 AWG patch cords with Power over Ethernet (PoE), the standard will likely incorporate an addendum sooner or later that maps out exceptions that should be made. For instance, the short response to: “Would I be able to utilize 28 AWG fix lines for PoE?” is “Yes.” But there are a few impediments for applications that request more than 30W. To avoid any risk, Belden suggests keeping 28 AWG PoE patch cords in groups of 12 or less to limit temperature rise.

Other Notable Additions

Beyond the augmentations of MPTL and 28 AWG fix strings to the standard, there are a couple of different changes we can expect as well: One of them being the incorporation of Category 8 cabling. The standard will include the Category 8 cabling addendum initially incorporated into ANSI/TIA-568-C.2-1 and fuse it into the standard.

Also coming out will be TSB-184-A, Guidelines for Supporting Power Delivery Over Balanced Twisted-Pair Cabling, which gives proposals for twisted-pair cables that help IEEE 802.3bt PoE. One of the primary testing parameters incorporated into TSB-184-A will likewise be a piece of ANSI/TIA-568.2-D: DC resistance unbalance inside and between pairs, a prerequisite for the viable conveyance of power over four pairs. When it’s distributed, we may see different changes and augmentations to ANSI/TIA-568.2-D.

Security Camera PoE CAT Cable Install with Fluke Networks DSX Testing

Ron Tellas – Belden
