Power over Ethernet: Technology, Applications, and Standards
Introduction
Power over Ethernet (PoE) was initially developed to tackle a critical issue: keeping IP phones operational during power outages. Since the standard was first introduced in 2003, PoE technology has evolved, expanding its applications and driving the development of new standards. But what does this mean for your organization? Understanding the latest PoE standards, applications, and how cabling decisions today impact future readiness is essential for a forward-thinking technology strategy.
Technology: The Evolution of Power over Ethernet
PoE was created to provide power through the same Ethernet cable used to transmit data. The original IEEE 802.3af standard allowed for up to 15.4W of power delivered on two pairs of twisted wires. This approach ensured that IP phones could continue functioning during outages if backup power was available at the main system.
Technological advancements now enable PoE to transmit power over all four pairs in an Ethernet cable, delivering up to 71.3W for Type 4 devices. This expanded power capability allows PoE to support a growing range of devices. As the technology advances, we continue to see improvements in power delivery, efficiency, and adaptability.
Applications: Expanding PoE's Reach

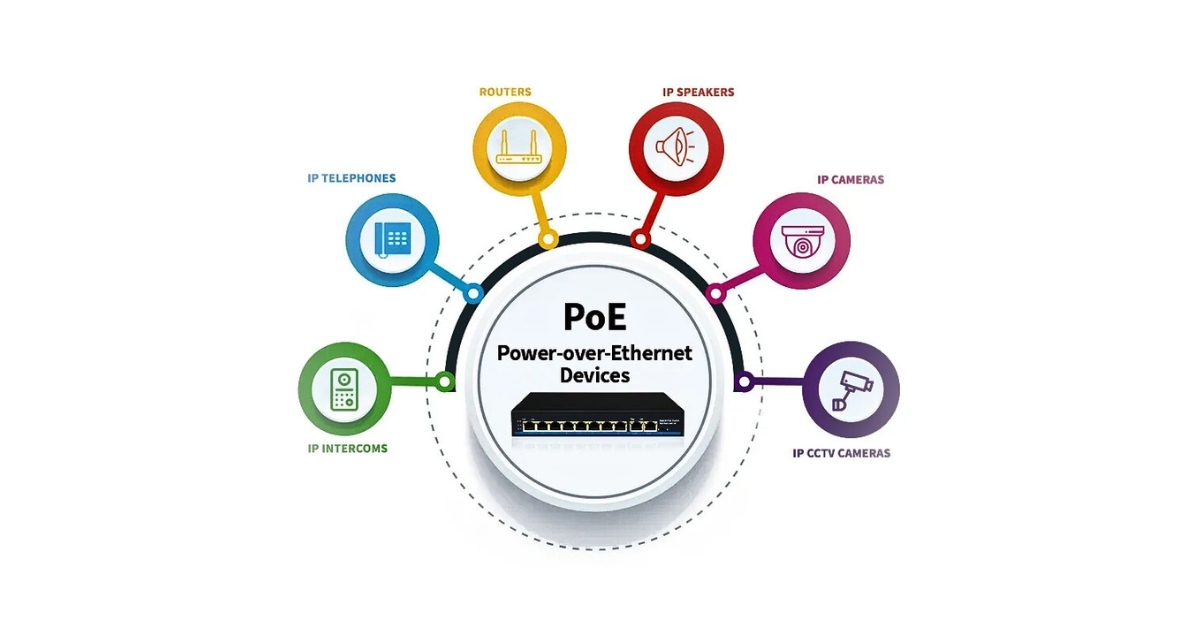

PoE has evolved far beyond its original purpose of powering IP phones. Today, it supports a broad spectrum of devices, including wireless access points, IP cameras, and access control systems. PoE also plays a vital role in the growth of intelligent building systems, such as lighting, building sensors, and industrial control components. For example, the West Baden Springs Hotel in Indiana implemented PoE lighting in its dome, reducing energy consumption by over 90% and enhancing guest experience through improved lighting control.
The list of PoE-powered devices continues to expand. From remote point-of-sale kiosks and IP TVs to 5G small cell antennas and digital signage, any device needing both data and power can potentially utilize PoE. The future of PoE applications is virtually limitless, as long as power requirements align with the technology's capabilities.
Standards and Installation Considerations
PoE standards have evolved alongside its applications. The IEEE 802.3af standard, introduced in 2003, was followed by the 802.3at (PoE+) standard in 2009, increasing power to 25.5W. In 2018, the IEEE 802.3bt standard (PoE++) was introduced, providing up to 71.3W for Type 4 devices, utilizing all four twisted pairs.
These advancements create both opportunities and challenges. While the increased power enables a broader range of devices, it also requires careful cabling design. Category 6A cables are recommended for new installations due to their superior heat dissipation, and guidelines from BICSI, UL, and TIA help manage cable bundle sizes to reduce heat buildup. Proper cable selection and installation ensure long-term reliability and performance in PoE deployments.
Conclusion
Power over Ethernet has grown from a niche solution into a foundational technology for modern network infrastructure. Understanding PoE technology, applications, and standards is essential for planning successful technology deployments. With the right cabling and installation practices, PoE can offer a powerful, flexible solution for powering and connecting a wide array of devices.
For more insights, tips, and the latest updates on technology trends, follow our blog and share your thoughts in the comments!
Written by: Brandon Leffers - Business Development Manager
