Will My Current Plant Cabling Support 2.5/5GBASE-T For Wireless Access Points?

Powered by the NBASE-T Alliance and adaptable with the NBASE-T specifications, IEEE 802.3bz indicates 2.5 Gbps more than 100 meters of Category 5e cabling or 5 Gbps more than 100 meters of Category 6 cabling. It additionally incorporates support for 5 Gbps over Category 5e on characterized use cases (expanded frequencies).

2.5/5GBASE-T was acquainted to help 802.11ac wireless access points over the installed base of Category 5e, 6, and since effective APs are out in the world now, numerous commercial organizations are hoping to convey this innovation and receive the rewards of quicker Wi-Fi without a cabling update.

In any case, not all cabling plants are made the same. MAC services throughout the years can cause physical harm that can affect AP fulfillment. It is shrewd to know whether your current plant cables will bolster 2.5/5GBASE-T before you put resources into the large purchase.

The Why and the How

80% of the installed based cabling network infrastructures in enterprise LANs comprises of Category 5e that works at 100 MHz or Category 6 cabling that works at 250 MHz—the two of which are regularly ready to help up to 1000 Mbps. For most enterprise clients, this offers a lot of data transfer capacity for office applications.

At the point when 802.11ac Wi-Fi was presented in its first stage (Wave 1), it required gigabit connectivity, which implied that guidelines based on Category 6 and Category 5e cabling foundations could bolster these wireless access points. In any case, to help supply more wireless access points and applications like video streaming over Wi-Fi, speeds in an overabundance of gigabit Ethernet were required. In this way, the second period of 802.11ac (Wave 2) hit and multiplied the speed.

Expanding the life of Category 5e and 6 cabling by empowering support for Wave 2 802.11ac Wi-Fi, the 802.3bz models depends on 10GBASE-T however lessens the signaling rate to half (for 5GBASE-T) and to a quarter (for 2.5GBASE-T) to fall inside the frequencies for Category 6 and Category 5e cabling. It likewise offers help for PoE, including PoE plus (Type 2) and up and coming four-pair Type 3 PoE, to convey capacity to the Wi-Fi access points.

Risk Assessment

While alien crosstalk is a restricting component in 2.5GBASE-T and 5GBASE-T applications, Category 5e and Category 6 cabling do exclude alien crosstalk particulars. Thusly, TIA TSB-5021 and ISO/IEC TR 11801-9904 execution determinations were acquainted with examing the existing Category 5e and 6 cabling for the help of these applications. These reports describe broadened recurrence of frequency for Category 5e execution over 100 MHz (to help 5GBASE-T) and incorporate capability details, including inside cabling parameters (insertion loss, return loss, near-end crosstalk, etc.) and alien crosstalk.

Alien crosstalk execution for help of 2.5/5GBASE-T applications is resolved utilizing a definition called ALSNR, Alien Limited Signal to Noise Ratio. ALSNR combines calculations for insertion loss, alien near-end crosstalk (NEXT), and alien far-end crosstalk (FEXT).

It is notable that longer, more tightly link groups of cable display alien crosstalk, and a judgment can be made to figure out which channels might be in danger. This evaluation should be possible by checking on cabling documentation, past test outcomes, and visual examinations.

Wireless Access Point

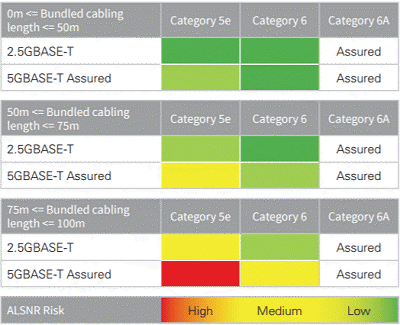

This table from the NBASE-T Alliance is a great guide for collecting issues—the longer the length of bundled cabling, the higher the ALSNR risk. This is the place great documentation proves to be useful—test results from the time the plant cabling was sent can be arranged by length to figure out which connections may have issues. A visual examination will fill you in as to whether these connections are firmly packaged.

Mitigation Can Help, Only Testing Will Tell

While most business clients with plant cabling that have been recently certified will have little issue supporting 2.5 and 5GBASE-T, testing is the best way to genuinely know whether your connections will work appropriately. Fortunately, the Fluke Networks’ DSX series of testers incorporate a possibility for 2.5 and 5GBASE-T testing—and it is done in under ten seconds.

If the current Category 5e or Category 6 plant cabling includes long-running of tight cable bundles that keep it from passing ALSNR to help 2.5/5GBASE-T, there are some alleviation tips you can attempt. Unbundle cables, particularly patch cords since the interfering signal is strongest nearest to the transmitter. Another alternative is to have a go at replacing Category 5e or 6 patch cords with Category 6a or shielded cable. You can likewise confine 2.5/5GBASE-T application to shorter channels (under 50 meters) or by picking nonadjacent patch panel ports for your 2.5/5GBASE-T applications.

And if you do need to mitigate, make sure you test again with your DSX tester to confirm support.

Wired Installing Wireless Access Points

Mark Mullins @ Fluke Networks
